Description

FOLDABLE SQUAT RACK

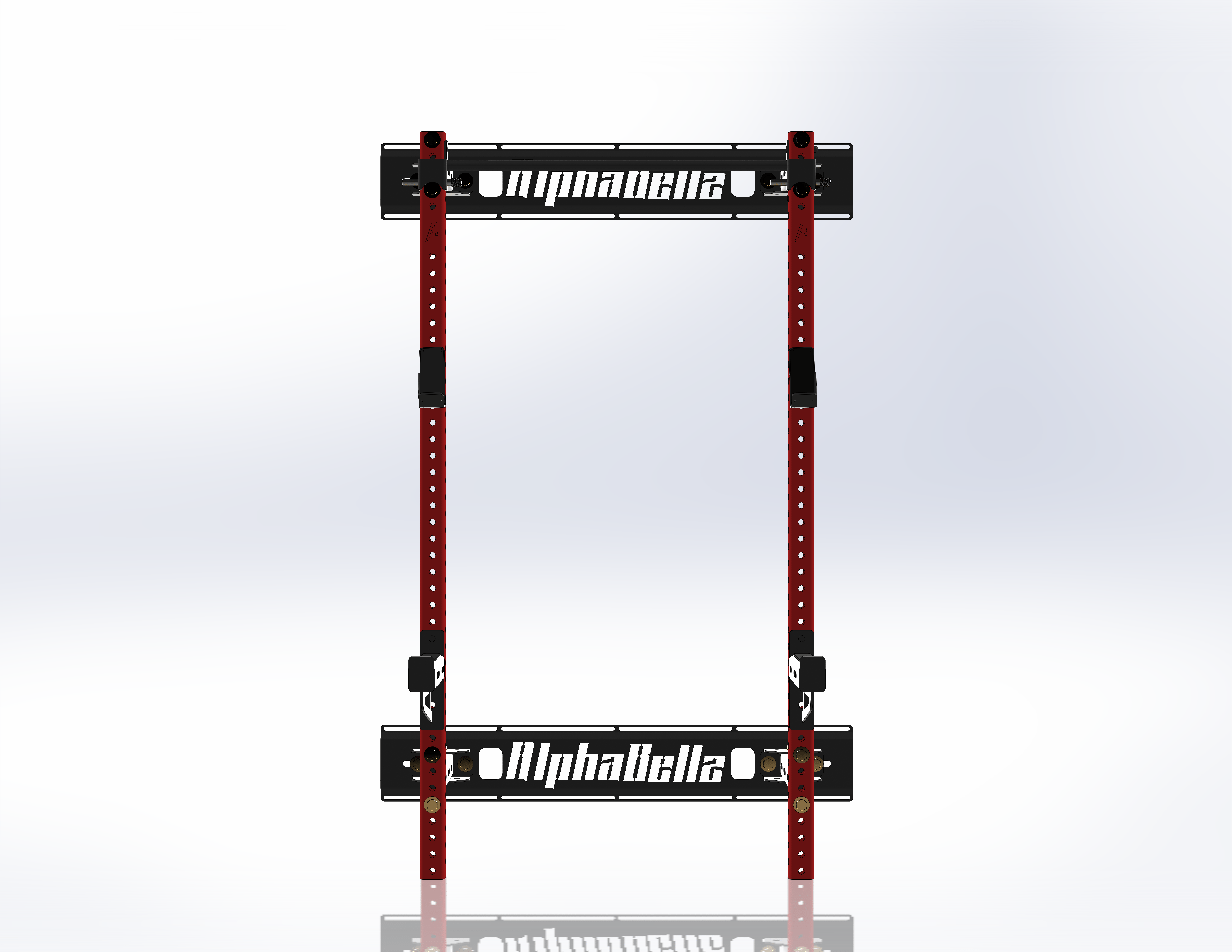

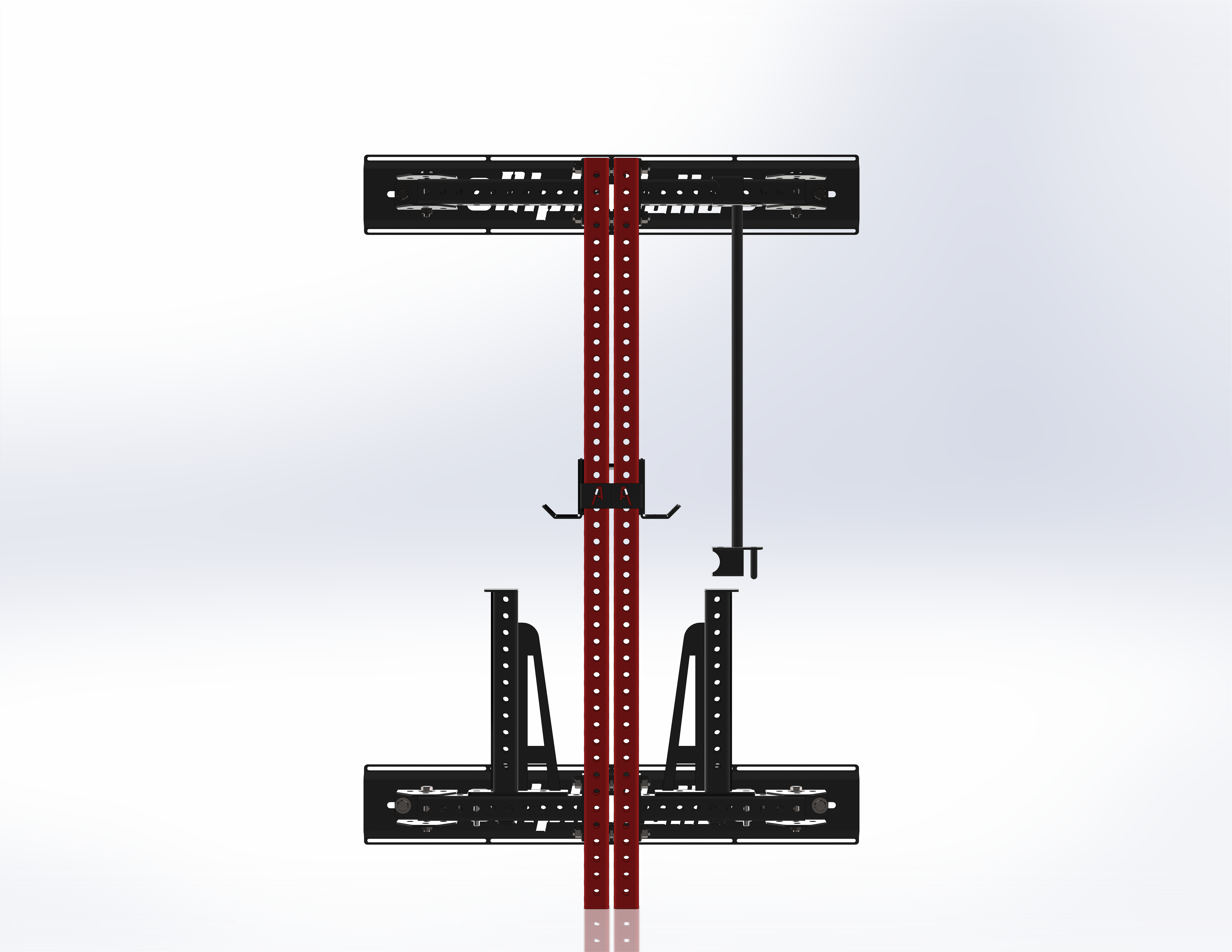

The design challenge was to come up with a wall-mount unit that could be folded inward or outward for space savings, yet still offer the sturdiness of our standard racks. To achieve this, our engineering team developed a unique hinge-and-pin system that is both easy to install and rock solid. In use as a squat stand, pull up rig, or power rack, the feel is miles beyond lighter setups that use thinner steel.

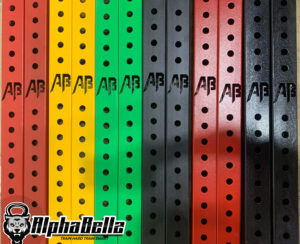

A Alphabellz original Fold Back Rack is built with two 3×3″ 11 gauge steel uprights, laser cut high quality steel, with Westside hole spacing through the bench/pull area, and 2″-on-center spacing above and below. All steel is powder coated in the Alphabellz factory for a durable finish.
Optional Fold Back Rack Stringers

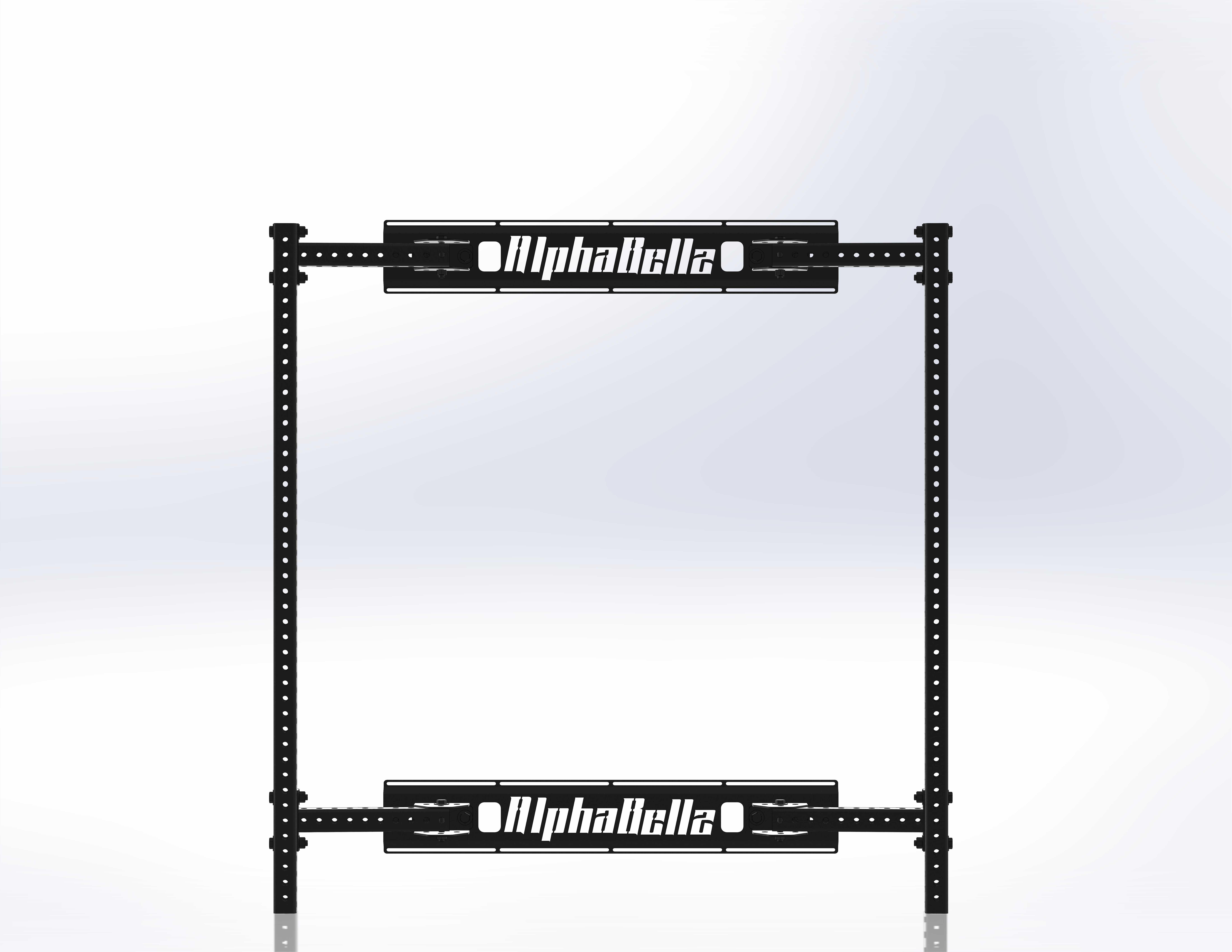

For optimal support, Alphabellz recommends adding a pair of stringers to your Fold Back Rack. Our custom-compatible stringers are made from laser-cut and formed 7-gauge steel and finished in our texture black powder coat. They measure 59″ long x 130.125″ tall, and extend 2″ off the mounting surface when installed. One stringer is used to mount the top hinge brackets and the other for the bottom hinge brackets.
Optional Fold Back Rack Wood Stringers.
For optimal support, Alphabellz recommends adding a pair of stringers to your Fold Back Rack. Our custom-compatible stringers are made from Kale wood. They measure 59″ long x 130.125″ tall, and extend 2″ off the mounting surface when installed. One stringer is used to mount the top hinge brackets and the other for the bottom hinge brackets.

SPECIFICATIONS:

• 3×3 11 gauge steel
• Dimensions 48” W , 90” H , 24” D
• 20mm Holes with 30mm spacing in between holes.

Attachments:

• A pair of JHooks (fiber coated)
• 1.25” adjustable Pull up bar
• 5/8” hardware
• 6-Locking Pins
• 4 folding brackets
• Stringers CNC made
• Signature Powder coated
